TH-110BH INFRARED SAUNA WRAP
REGULAR VOLTAGE FULL-ENCLOSURE
INFRARED ENERGY WRAP
1 Zone: Uniformed Heat - A Slimmer You
Discontinued
Return to
Infrared Body Wrap Page
The Infrared Sauna
Wrap TH-110BH is a full-enclosure FIR device, with 1
body heating zone, suitable for professional use at a
spa, weight loss center or beauty salon. Sturdy and made
for frequent operation. Provides a complete sauna
experience. The Infrared Sauna Wrap is also portable and
easy to clean, for travel or home use. The direct heat
from the blanket allows for gentle radiant relaxation of
the muscles and controlled perspiration.
INFRARED SAUNA WRAP TH-110BH
SYSTEM COMPOSITION AND FUNCTIONS:
| The TH-110BH Infrared SAUNA WRAP is
composed of a hand-held controller, a power box and a thermal
blanket. |
|
Hand-Hold
Controller: |
adjusts and controls the temperature
and timer settings of the blanket. |
| Power Box:
|
supplies main power to the hand-held
controller. |
| Thermal Blanket: |
conducts heating to the body. Made of Nylon,
covered by a layer of PU (polyurethane) fabric |
|
| |
|

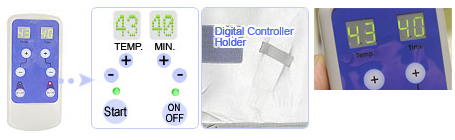

PANEL DISPLAY AND
FUNCTIONS OF THE KEYS: |
 |
|
 |
| ON/OFF |
Switch the system 'ON' or 'OFF'
|
| START Key |
| Press START key to start or stop the
device after setting temperature and
timer. |
|
| Temperature Key ( +/ -
) |
Press
 Press ‘+’ to increase or press ‘-’ to decrease
the temperature, 1 o C for each
press. |
|
| Timer Key ( +/- )
|
| Press ‘+’ key to increase or press
‘-’ to decrease the time, 5 minutes for each
press. |
|
| Temperature Display
|
| Displays the chosen temperature in
degrees Centigrade. |
|
| Timer Display |
| Displays the time
remaining. |
|
|
| |
|
INFRARED SAUNA WRAP TH-110BH
OPERATION PROCEDURE: |
| 1. |
Place the TH-110BH Infrared SAUNA WRAP on a
flat surface, such as the bed or floor. |
| 2. |
Wrap your body in the blanket. If a massage or body oil is
used, then it is recommended to first wrap the body in a
plastic film or sheet to protect the thermal blanket. |
| 3. |
Put the power box on a flat surface such as a table and
insert the plug into the main power socket. |
| 4. |
Turn the main power switch on at the back of the power
box. The ‘Power’ red indicating light on the hand-held
controller will shine. The device has not started working
yet. |
| 5. |
Press the ‘ON/OFF’ key on the hand-held
controller to start setting the temperature and the
timer. |
| 6. |
Press ‘Timer + / -’ key on the hand-held controller to set
the working time. For each press, the time will increase or
decrease by 5 minutes. The default time is 40 minutes. |
| 7. |
Press ‘Temperature + / -’ key on the hand-held controller
to set the working temperature. For each press, the
temperature will increase or decrease by 1° Centigrade. Set
the temperature to your specific requirements. The default
temperature is 42° C. |
| 8. |
Press ‘START’ key on the hand-held controller. The green
indicating light will shine showing the heating is started.
|
| 9. |
The hand-held controller can be inserted into the pocket
on top of the blanket. |
| 10. |
Close the blanket by zipping up the bag and sticking the
shoulder protectors into place. |
| 11. |
When the timer counts down to ‘0’, the buzzer will sound
for three times and the digital timer will display ‘0’ showing
the heating is over. |
| 12. |
After using the Infrared SAUNA WRAP, pull out the plug
from the main power socket. |
| 13. |
If at any time you need to stop the session, just press
the ‘START’ key. When the green indicating light goes off, the
system will stop working. |
| 14. |
Wipe the sweat from the surface of the thermal blanket
with a wet towel and dry the thermal blanket by laying it flat
on a bed or table for more than 1 hour. |
| 15. |
Fold the blanket and store it in a dry and cool
place. |
|
Suggested Use:
|
| 1. |
When the room temperature is lower than 20 °C, you may
preheat the blanket for 10 minutes prior to use. |
| 2. |
It is suggested that you are well hydrated by drinking a
glass of water prior to using. |
|
| |
|
INFRARED SAUNA WRAP
TH-110BH TECHNICAL SPECIFICATIONS: |
| Model No.
|
TH-110BH
|
| Input Volts |
100V~120V 60 HZ/ 220V~240V 50HZ
|
| Output Volts |
AC110V
|
| Material |

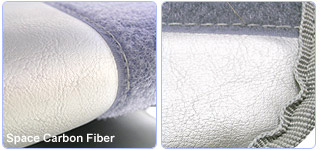

Made of Nylon, covered by a layer of PU
(polyurethane) fabric, with heating elements of Space Carbon
Fiber |
| Input Power |
330W
|
| Control Panel |
Digital Control
|
| Heating Zone |
1 |
| Temperature |
30°C ~ 60°C
|
| Separate Heating Zone
Control |
N/A
|
| Timer |
0~95 minutes
|
| Folded Size
|
180 x 80 cm
|
| Unfolded Size
|
180 x 190 cm
|
| Net Weight |
7.0kg
|
| Warranty |
1 year
|
|
| |
|
|
INFRARED SAUNA WRAP
TH-110BH |
 |
| |
|
• |
1 Heating zone.
|
|
• |
Regular Voltage
|
|
• |
Width x Length:
180 x 190 (cm) |
|
• |
Temperature: 30°C~60°C |
|
• |
Digital Control
|
| |
Price $349.00
|
|
|
|
|
Free Shipping To Lower
48 States |
These Infrared Heat Devices are not medical products.
Not intended to diagnose, treat, cure or prevent any disease. If you are uncertain whether you can use any of these products, please consult your physician before using it. The
information and statements made are for
education purposes and are not intended to
replace the advice of your family doctor.
|
|
